D型夹壳联轴器（HG21570-95）

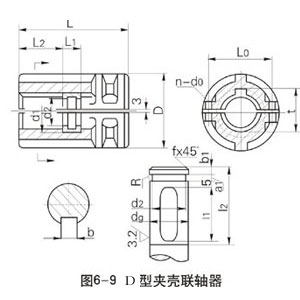

D型夹壳联轴器主要尺寸（HG21570-95）
|
标定符号 |
孔径dg（H7）
Diameter of Hole |
Mmax
（N·m） |
D
|
L
|
L
H8/j7 |
L2
|
L0
|
n-d0
|
d1
H11/h11 |
d2
H11 |
a1
H11 |
b1
|
∠1
|
∠2
|
R
|
f
|
b
|
t
|
重量
Weight（kg） |
|
D-25
|
25
|
80
|
102
|
130
|
26
|
52
|
64
|
4-14
|
32
|
20
|
6
|
5
|
50
|
70
|
0.2
|
0.4
|
8
|
28.3
|
4.10
|
|
D-30
|
30
|
90
|
102
|
130
|
26
|
52
|
64
|
4-14
|
38
|
25
|
6
|
5
|
50
|
70
|
0.2
|
0.4
|
8
|
33.3
|
4.47
|
|
D-35
|
35
|
236
|
118
|
162
|
26
|
68
|
80
|
6-14
|
43
|
30
|
6
|
6
|
55
|
85
|
0.4
|
0.6
|
10
|
38.3
|
7.60
|
|
D-40
|
40
|
236
|
118
|
162
|
26
|
68
|
80
|
6-14
|
48
|
35
|
6
|
6
|
55
|
85
|
0.4
|
0.6
|
12
|
43.3
|
7.60
|
|
D-45
|
45
|
530
|
135
|
190
|
34
|
78
|
100
|
6-14
|
57
|
40
|
8
|
8
|
70
|
100
|
0.4
|
0.6
|
14
|
48.8
|
10.85
|
|
D-50
|
50
|
530
|
135
|
190
|
34
|
78
|
100
|
4-14
|
62
|
42
|
8
|
8
|
70
|
100
|
0.4
|
0.6
|
14
|
53.8
|
10.85
|
|
D-55
|
55
|
530
|
135
|
190
|
34
|
78
|
100
|
6-14
|
67
|
46
|
8
|
8
|
70
|
100
|
0.6
|
1
|
16
|
59.3
|
10.85
|
|
D-60
|
60
|
1400
|
172
|
250
|
42
|
104
|
124
|
8-18
|
73
|
50
|
10
|
10
|
100
|
130
|
0.6
|
1
|
18
|
64.4
|
25.06
|
|
D-65
|
65
|
1400
|
172
|
250
|
42
|
104
|
124
|
8-18
|
78
|
55
|
10
|
10
|
100
|
130
|
0.6
|
1
|
18
|
69.4
|
25.06
|
|
D-70
|
70
|
1400
|
172
|
250
|
50
|
100
|
124
|
8-18
|
83
|
60
|
12
|
12
|
90
|
130
|
0.6
|
1
|
20
|
74.9
|
25.06
|
|
D-80
|
80
|
2650
|
185
|
280
|
58
|
111
|
138
|
8-18
|
94
|
70
|
14
|
14
|
100
|
145
|
0.6
|
1
|
22
|
85.4
|
30.16
|
|
D-90
|
90
|
5200
|
230
|
330
|
66
|
132
|
170
|
8-23
|
105
|
80
|
16
|
16
|
125
|
170
|
0.6
|
1
|
25
|
95.4
|
56.38
|
|
D-100
|
100
|
5200
|
230
|
330
|
66
|
132
|
170
|
8-23
|
115
|
90
|
16
|
16
|
125
|
170
|
0.6
|
1
|
28
|
106.4
|
56.38
|
|
D-110
|
110
|
9000
|
260
|
390
|
74
|
158
|
200
|
8-23
|
125
|
100
|
18
|
18
|
140
|
200
|
0.6
|
1
|
28
|
116.4
|
90
|
|
D-120
|
120
|
15000
|
280
|
440
|
74
|
183
|
200
|
10-23
|
135
|
110
|
18
|
18
|
180
|
225
|
0.6
|
1
|
32
|
127.4
|
125
|
|
D-125
|
125
|
15000
|
280
|
440
|
74
|
183
|
210
|
10-23
|
140
|
115
|
18
|
18
|
180
|
225
|
0.6
|
1
|
32
|
132.4
|
125
|
|
D-130
|
130
|
15000
|
280
|
440
|
74
|
183
|
210
|
10-23
|
146
|
120
|
18
|
18
|
180
|
225
|
0.6
|
1
|
32
|
137.4
|
125
|
|
D-140
|
140
|
24000
|
325
|
500
|
84
|
208
|
250
|
10-33
|
158
|
128
|
20
|
20
|
200
|
255
|
0.6
|
1
|
36
|
148.4
|
180
|
|
D-160
|
160
|
28000
|
340
|
500
|
90
|
205
|
260
|
10-33
|
180
|
148
|
22
|
22
|
200
|
255
|
0.6
|
1
|
40
|
169.4
|
215
|
